NAF Front Bogie Axle Drive System

NAF's front bogie axle drive system delivers high tractive effort and similar performance to that of track systems.

NAF FrontBogieAxleDriveSystem 55d1e5be4dfe0
200px Logonafsmall 11109370

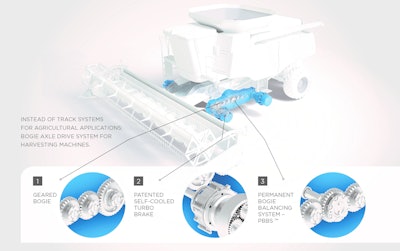

NAF AG introduces its front bogie axle drive system for harvesting machines.

  • Replaces use of expensive track systems as front drivelines
  • Oscillating bogie halves (one on each side) works in tandem with integrated Permanent Bogie Balancing System (PBBS) to provide equal distribution of weight and tractive effort on all four tires
  • Provides similar driving performance in comparison to track systems
  • Features modular system
  • Delivers high tractive effort
  • Includes high capacity oil immersed disc brake integrated in the planetary drives
  • Reduces ground pressure
  • Offers low maintenance and reduced wear
  • Optional tire pressure control system available
  • Centrally driven rear steering axles with adjustable track width available to complete harvester’s driveline
  • Rear steering axles nearly double tractive effort, have a weight optimized design, and include simplified hydraulic control and regulation system requiring only one central motor
  • Adapts to different tire sizes
