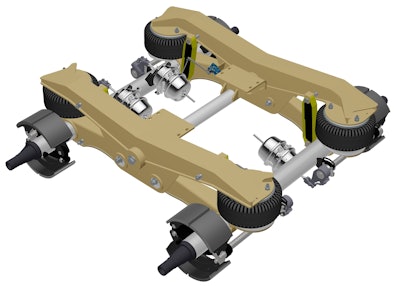

Ridewell RAR-254 Air-Ride Single Point Suspension

The RAR-254 air-ride single point suspension from Ridewell features a trunnion mount design and is available in ride heights as low as 10 in.

Ridewell 588666e589446

Ridewell Suspensions has released the first model of its air-ride single point suspensions, the RAR-254.

  • Leverages proven components of model RAR-266 suspension
  • Provides smoothness of an air-ride suspension with advantages of a single point, pedestal mount suspension
  • Trunnion mount design
  • Available in ride heights as low as 10 in. (25.4 cm)
  • For integration with Ridewell drum and disc brake axles
  • Can be shipped fully assembled with pre-aligned axles and pivot hardware torqued to specification as an option
  • Uses high-density urethane bushing for trunnion assembly center bushing instead of trunnion U-bolts to reduce maintenance
  • Utilizes weld-on pedestal mounts for easy ride height customization
  • Replaceable boss for pivot bushing provides for complete replacement of the bushing assembly
  • Narrow and wide bushing versions are available
  • Custom ride height, pedestal height and pedestal mount bolt pattern versions can be designed upon request
