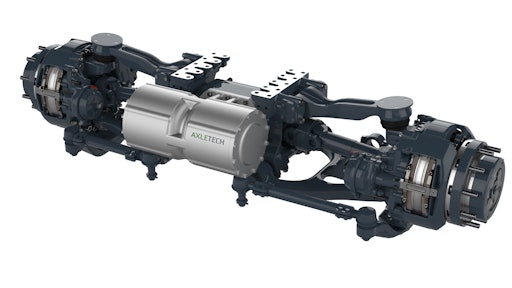

AxleTech manufactures a range of Independent Suspension Axle Systems (ISAS) from light-duty to heavy-duty high-mobility vehicles. The ISAS line features a double-wishbone design that provides unrivaled ride control and handling with superior cross-country mobility and safety in all operating environments. The eISAS 5000 Series electric independent suspension is a concept that AxleTech is engineering for full battery electric vehicles (BEV), fuel cell range extender electric vehicles (FCEV), and internal combustion engine (ICE) or turbine generator range extenders (REV).
- Improved fuel efficiency, energy from braking recharges batteries
- Integrated motors and cooling systems enhance continuous power
- Helical gears allow for quiet operation and higher efficiency than bevel gearing
- Proprietary control algorithms allow for higher precision motor utilization
- Rated to 22,075-29,000 lbs. (10,000-13,200 kg)
- Axle weighs approximately 2,800 lbs. (1,300 kg)
- 650V (550 to 675) performance numbers are at 650V. Higher power is available up to 750V
- Power range from 200-500 kW
- Peak power up to 500 kW
- Air disc brakes
