Link 20K Model Self-Steer Auxiliary Suspensions

At The Work Truck Show 2019, Link Mfg. will introduce the 20K model suspension which enhances the performance, strength and uptime of work trucks and heavy-duty vocational vehicles.

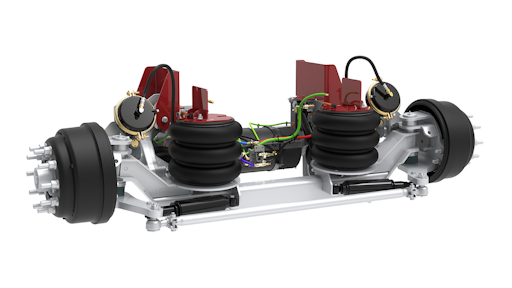

20 K Rendering 10
Link Mfg. Ltd.

Link Mfg., Ltd. announces the unveiling of its updated and improved 20K self-steer suspension.

  • Enhanced 20K axle incorporates proven technological and component upgrades
  • Features Swift Mount technology, allowing installation to be completed in as little as 2 hours, compared to between 6 and 8 hours for competing systems
  • Swift Mount interchangeable ride height brackets incorporate improvements in the way the frame brackets attach to suspension hanger
  • Brackets can be used to mount any Link suspension
  • Swift Mount design uses stepped-edge on frame bracket, offering installers a visual indicator to help center the suspension on a truck
  • Suspension is easily centered, greatly reducing installation times, by comparing frame bracket-to-hanger location for both the driver and passenger sides
  • Rear air spring brackets are compatible with wide flange frame rails, accomplished by having air fittings oriented to the outside
  • Air fittings can also be repositioned to the inside if desired
  • Air springs can be removed and replaced without needing to remove bracket from the truck for ease of service later
  • Optional bulkhead air control system is available, fitting within each axle’s compact mounting envelope
  • Air fittings are push-to-connect
  • Air tanks are designed to mount slightly above cross members, protecting them in cases where suspension bottoms out
  • Equipped with rugged cast lift arms and Link-KOAT migratory self-healing metal treatment
  • Link-KOAT provides corrosion resistance and rust protection, even when surfaces are exposed to excessive abrasion, harsh chemicals and other severe-duty environmental factors
  • Weighs approximately 6% less than comparable 20K self-steer axles
  • Integrated industry-standard wheel end and brake components boost uptime by streamlining maintenance processes and inventory overhead
