Link 52K Air Link Gen 3 Tandem Drive Suspension

Link’s Air Link Gen 3 Tandem Drive Suspension accommodates 315 tires with snow chains and weighs 50 lbs. less than its predecessor.

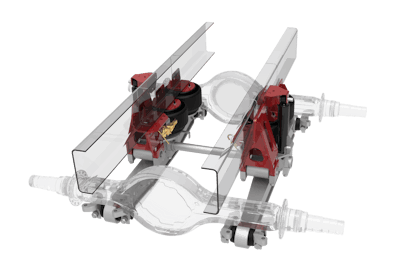

Air Link Iii 01

Link Mfg., Ltd. announces the introduction of its 52K Air Link Gen 3 Tandem Drive Suspension.

  • Air-over-walking-beam suspension design
  • Specifically reconfigured to meet the needs of states, municipalities and road maintenance contractors using tire chains on heavy vocational equipment with 315 tires
  • Features maintenance advantages
  • Weighs about 875 lbs. (396.9 kg), 50 lbs. (22.7 kg) lighter than predecessor and competing offerings
  • Reengineered specifically to improve clearance for 315 tires and chains while maintaining ride quality
  • Updates include lengthened hanger brackets, heavy-duty dampers moved forward, center bushings raised, and optimized vertical distance between trailing arm and walking beam pivots
  • Larger, high-volume, low-frequency air springs deliver smoother ride whether the vehicle is under load or empty
  • Dual height-control valves maintain proper ride height, leveling vehicle independent of load and maximizing its roll stability
  • Enables easier service and demands less maintenance
  • Anti-corrosive polyurethane bushings require no lubrication, and trailing arm bushings can be easily replaced with hanging brackets in situ
  • Features lower number of moving parts, extra-large bearing surfaces, more brawny main components and higher level of load-bearing redundancy
  • No future adjustments are required once wheel alignment is set
  • Delivers smooth comfortable ride, resulting in less driver fatigue and equipment damage
  • High roll stability, coupled with equal weight distribution to both axles, means safer operation on-highway, off-highway and in all weather conditions
  • 100% off-highway rated
  • Three times more roll stability than other vocational air-ride suspensions
  • Rides four times smoother than conventional spring pack and 10 times smoother than rubber block suspension
  • Treated with Link’s exclusive Link-KOAT migratory self-healing metal treatment, providing corrosion resistance and rust protection
