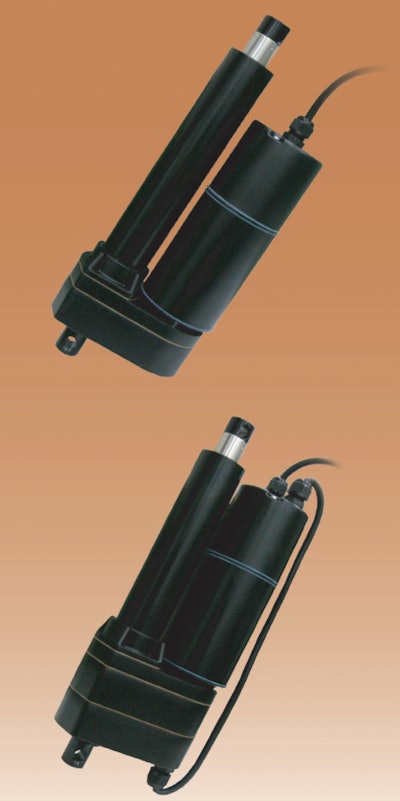

NIA ACME and Ball Screw Series linear actuators

Nook offers NIA ACME and ball screw series linear actuators.

July 29, 2010

Nook Industries Inc.

Nook Industries offers its NIA ACME and ball screw linear actuators which feature a compact size and enhanced IP65 protection options against the elements.

Designed for light-duty indoor/outdoor applications
Designed to deliver standard IP54, optional IP65 protection
Standard 110/115/230V AC single phase split capacitive motor delivers 25% duty cycle
Dynamic load capacity of 1,500 lbs.
Strokes from 4 to 24 in.
-26 to 65 C working temperature
Self-locking, and overload protection by clutch
Optional potentiometer feedback, adjustable limit switches available

Fill out the form below to request more information about NIA ACME and Ball Screw Series linear actuators
