Warner Linear B-Track K4x Actuators

The B-Track K4x actuators from Warner Linear include an integral bi-directional wrap spring brake for load-holding capability.

March 23, 2018

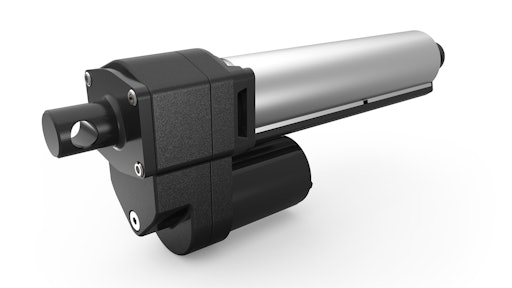

Warner Linear K4x Actuator

Warnerlinear 10056473

Warner Linear introduces its rugged-duty B-Track K4x actuators for demanding industrial applications.

Provides high load rating with ball nut screw for a 4,000 lb. (17,760 N) load capability in compact package size
Well suited for demanding applications where alternative to hydraulic or air cylinders is needed or where hydraulic power sources are not available
Applications include mobile off-highway equipment, solar panels, scissor and dump box lifts, and deck and implement lifts for mowers and tractors
DC motor driven
Incorporates all of the base features of K2x Series actuators including heavy wall construction, ball detent overload clutch, double ball bearing motors, heat-treated gears, rugged extension rod bearing support, protective coatings and O-ring seals throughout
Includes integral bi-directional wrap spring brake for load-holding capability
Operating temperature range of -20-150 F (-28.9-65.6 C); wider ranges are available
Features weather-resistant enclosure and seals (IP69K static, IP65 capable)
Twelve models are offered with stroke lengths up to 24 in. (61 cm)
Optional EP0.4 feature provides absolute position feedback
Simple potentiometer design is robust solution for high vibratory environments
Available EP1.x limit switch control provides end of travel positioning
Field-adjustable limit switches are mounted in channel on cover tube accessible below durable cover
