Proterra Unveils New Customizable Battery Pack for Heavy-Duty Commercial Vehicles

The new H Series battery packs were designed to package into standard truck frame rails and increase packaging flexibility.

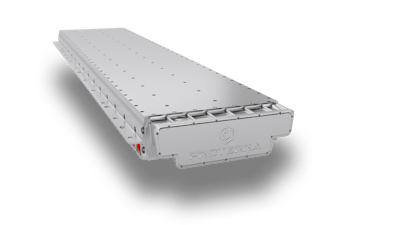

H Series Pack
Proterra
ProterraLogo

Proterra has unveiled its newest series of battery packs, the H Series, which offers a customizable energy storage system to power a wide range of heavy-duty commercial vehicles.

The new, narrower H Series battery packs were designed to package into standard truck frame rails and increase packaging flexibility for Proterra Powered customers.

In addition to the new H Series, Proterra will continue to offer its S Series battery packs, which powers Proterra’s fleet of battery-electric transit buses and other Proterra Powered vehicles.

H Series battery pack

Proterra’s modular H Series and S Series battery packs are highly customizable, enabling a vehicle’s energy storage system to be comprised of multiple packs. Proterra manufactured the more compact H Series battery packs with a width of 620 mm and the ability to hold 25-75 kWh of energy storage capacity. S Series battery packs have a width of 860 mm and can contain up to 113 kWh of energy storage per pack. Additional specifications for the H Series battery pack are available on the Proterra website.

Proterra’s flexible battery platform leverages industry-leading energy density manufactured for maximum range, a customizable design to fit within a variety of vehicles, and a ruggedized commercial grade housing to withstand harsh environments.


S Series battery pack

“Proterra’s safe, reliable battery technology has been proven in hundreds of vehicles that are on the road today. That’s why world-class manufacturers are choosing Proterra to power their school buses, coach buses, delivery vans, and other electric vehicles. Now, we are excited to extend our best-in-class battery platform to help power even more commercial vehicles and accelerate the transition to clean, quiet transportation for all,” says Proterra CEO and Chairman Jack Allen.

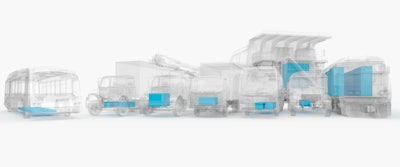

Proterra Powered leverages Proterra’s electric vehicle technology and expertise to help commercial vehicle manufacturers electrify their vehicles. Proterra battery systems are utilized by world-class OEMs to introduce 100% battery-electric vehicles, including electric school buses, coach buses, delivery vans, and low-floor cutaway shuttle buses. To date, Proterra Powered has helped world-class OEMs like Thomas Built Bus, Van Hool, FCCC, Bustech, and Optimal-EV introduce 100% battery-electric vehicles that are powered by Proterra electric vehicle technology.

“Proterra has invested in shaping our battery technology to exceed the requirements of commercial fleet applications around the globe,” says Proterra Chief Technology Office Dustin Grace. “Safety and reliability are at the heart of our technology products, which is why our battery platform employs state-of-the-art functional safety software and hardware. Further, our flexible battery platform enables energy and geometry ‘right-sizing’ to ensure our battery system meets the unique needs of each of our customers, including cost and range requirements.”

The H and S Series battery packs each leverages their own uniquely sized module. Both modules can be produced at four different voltage ratings, offering OEMs the flexibility to vary voltage and energy requirements to meet their individual needs. Utilizing top-tier NCM 811 lithium-ion cylindrical cells, Proterra’s battery platform is scalable in all dimensions and can support different vehicle voltages up to 1,200V DC and 6 MWh in size.

Proterra batteries feature patented passive and active safety features and liquid thermal conditioning, and they also adhere to state-of-the-art functional safety standards, including ISO 26262 (up to ASIL C). Passive Propagation Resistance, or PPR, is a foundational requirement of all Proterra battery packs. In the rare event of a latent cell failure, a localized thermal event is completely isolated and will not spread to neighboring battery cells. All Proterra battery products undergo rigorous testing to ensure they can withstand a full service life under the toughest conditions, including extreme heat, cold, water submersion, vibration, and impact.
