Vanair Offers PTO Shaft-Driven All-in-One Underdeck Power System

The new system features a 125-185 cfm rotary screw air compressor, 10 kW generator, 330-amp welder, 12V-24V-36V battery boosting, 12V-24V-36V battery charging and up to 30 gpm at 2,000 psi of hydraulic-driven power.

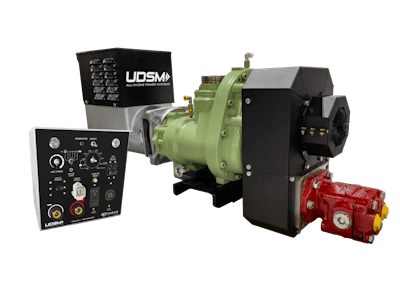

PTO Shaft-Driven Underdeck ALL-IN-ONE Power System
PTO Shaft-Driven Underdeck ALL-IN-ONE Power System
Vanair

Vanair has introduced the PTO Shaft-Driven Underdeck ALL-IN-ONE Underdeck Power System, offering six forms of power on the jobsite.

The PTO Shaft-Driven Underdeck ALL-IN-ONE Power System has been designed to integrate beneath the vehicle chassis, opening cargo space. “Our Air N Arc ALL-IN-ONE Power Systems streamlined six independent machines into a single unit with one footprint. With the new Underdeck ALL-IN-ONE Power System, we deliver the same comprehensive power, including welding capabilities, without encroaching on any vehicle bed space, said Ralph Kokot, CEO of Vanair.

The PTO Shaft-Driven Underdeck ALL-IN-ONE Power System features a 125-185 cfm rotary screw air compressor, 10 kW generator, 330-amp welder, 12V-24V-36V battery boosting, 12V-24V-36V battery charging and up to 30 gpm @ 2,000 psi of hydraulic-driven power. With this underdeck system, users can now replace six separate pieces of equipment, providing: additional bed space, maneuverability, reduced maintenance requirements, freed hitch and an overall reduction in weight.

Six Forms of Power

  • 125-185 cfm rotary screw air compressor
  • 10 kW generator
  • 330A welder
  • 12V, 24V and optional 36V and 48V battery boosting capabilities
  • 12V-24V and optional 36V and 48V battery charging capacity
  • Up to 30 gpm at 2,000 psi of hydraulic-driven power

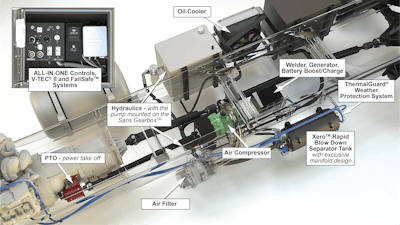

3 Ghosted All In One Underdeck Labeled 65eb1c83573e8

“Vanair continues to be at the forefront of innovation with our PTO Shaft-Driven Underdeck Power System. We understand the critical need for reliability and efficiency in equipment for on-the-job performance,” said John Dunn, strategic manager, underdeck and utility at Vanair. “This system not only offers unmatched power and functionality but also ensures minimal downtime, which is crucial for professionals who rely on dependable equipment to get the job done.”

The solution features the XERO Rapid Blow Down Tank design, which allows for immediate compressor disengagement and reengagement with zero blow-down time. This tank design eliminates the need to wait for the system to blow down completely, preventing oil carryover issues. Moreover, the XERO Tank permits up to a 15% angle of operation from side-to-side or front-to-back, offering versatility and adaptability on the jobsite.

Reliability

For reliability and security, Vanair equips all its PTO Shaft-Driven Underdeck Power Systems with the FailSafe Dual Sensory Redundancy System as a standard feature. This system offers an uninterrupted power supply, switching to the backup unit in the event of a thermistor or transducer sensor failure. Furthermore, professionals can opt for the optional ThermalGuard Weather Protection Kit, a patented design that preheats the compressor oil and regulators using the vehicle’s warm engine coolant. This feature prevents oil starvation and freeze-ups during frigid conditions.

“We take great pride in offering unmatched cost savings and performance with our UltraLife Air/Oil Separator Element. This innovative element sets new industry standards with its extended lifespan of 6,000 hours, delivering up to six times more separator life compared to other units on the market,” said Dunn.
