icotek KT-M Cable Grommet

The KT-M cable grommet is suited for interfacing to signal, data, power or hybrid connectors.

Icotek Kt M
Logo Icotek With Slogan

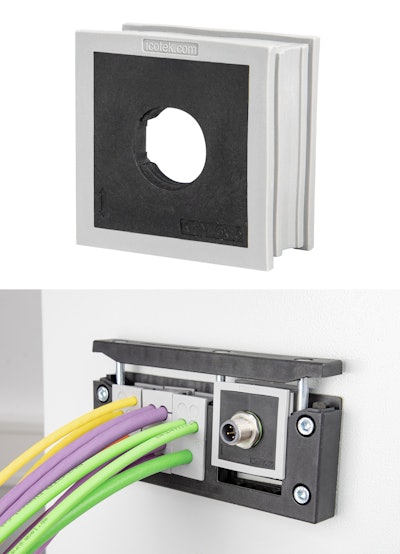

With the KT-M cable grommet from icotek, the built-in plugs and installation jacks are integrated directly into the icotek cable entry strips KEL, KEL-U or KEL-ER.

  • Suited for interfacing to signal, data, power or hybrid connectors by simply screwing them into threads of grommet
  • Hose fittings or pressure compensation elements can be easily screwed into the grommet
  • Built on basis of large KT cable grommet in which polyamide body is integrated
  • Available with inner threads of M12x1.0, M16x1.5, M20x1.5 and M25x1.5
  • Blind grommet available for special solutions
  • Integrated polyamide body is completely closed on one side
  • Effective area is 24 x 24 mm (0.9 x 0.9 in.), wall thickness is 6 mm (0.2 in.)
  • Special bores can be made or smaller flange bushes (for example for hybrid device connectors) can be attached
