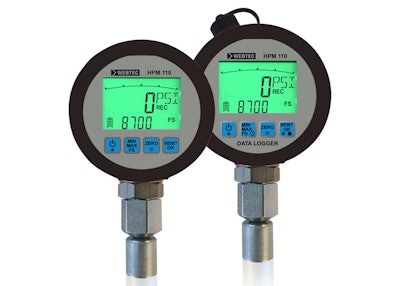

Webtec HPM110 Digital Pressure Gauge with USB Interface

Webtec introduces the HPM110 digital pressure gauge which is now available with a USB interface to facilitate data logging.

• Real-time clock records both current measured pressures, as well as the minimum and maximum values
• Users can transfer stored data to a PC or laptop in CSV file format where they will see a time and date stamp against recorded pressures
• Offers continuous monitoring of oil, gas, water and other pressure media in mobile equipment, industrial hydraulics, compressors and process control systems
• Weighs 500 g (1.1 lbs.)
• Features a back-lit visual display for simple operation
• Screen simultaneously displays information that includes actual pressure, peak pressure, battery level and the measurement units selected
• Buttons on the front panel are used to make, adjust and clear settings accordingly
• Maximum system pressure of 600 bar (8,700 psi) for fluids in the temperature range of -20-80 C (-4-176 F), while accuracy is ±0.5% at full scale
• Installation in any orientation is possible (if required) using a standard test point, or via permanent system connection
• No electrical connections are necessary as the plug and play gauge is battery-operated
• Body material is made of robust zinc die casting with a protective TPE rubber cover to tolerate use in challenging environments
• Most internal components are stainless steel, with NBR seals to provide IP76 ingress protection rating (IP65 data-logging model)
• Available in four models for each version (the data-logging unit comes with a kit): 0-100 bar or 0-600 bar (M16 x 2 porting); and 0-1,500 psi or 0-8,700 psi (7/16 in. [1.1 cm] UNF porting)
