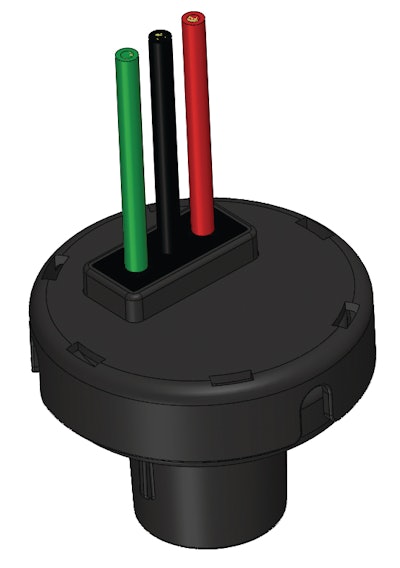

Filter Minder (Engineered Products Co) introduces a new low vacuum sensor to monitor air filter restriction.
- Designed for severe duty service for all types of vehicle and stationary equipment applications
- As air filter restriction increases, the sensor gives a comparable voltage output range of 0.5 to 4.5 volts full scale
- Output signal is accurate within +/- 2.5% over a temperature range of -40 to 125 C
- Sensor is reverse and over-voltage protected
- Threaded mounting ports can be supplied with 1/8 in. pipe thread, 3/8 in. straight thread, or M-10 metric
- Furnished with flying leads, or with your choice of electrical connector
