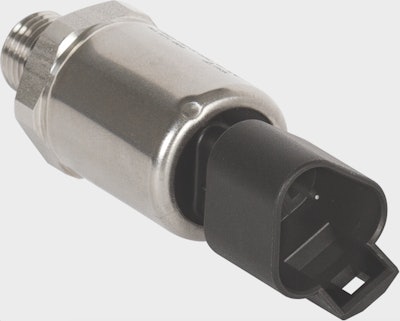

Turck PT2100 Pressure Transmitter

Introduced at IFPE 2020, Turck's PT2100 pressure transmitter includes an integrated Deutsch connector and is ruggedly designed for use in mobile equipment.

Turck Pt2100 Pressure Transmitter

The Turck PT2100 pressure transmitter is now available for use in mobile equipment.

  • Meets high standards for mobile hydraulic equipment, including EMC resistance
  • Integrated Deutsch connector
  • High noise immunity and robust design
  • Features IP67 and IP69K ratings for use in outdoor applications
  • Wide pressure range from 600-7,500 psi (41.4-517.1 bar)
  • Ambient temperature rating of -40-100 C (-40-212 F)
  • Fluid temperature rating of -40-125 C (-40-257 F)
  • Wide assortment of process connections, including NPT, SAE and BSPP
  • Integrated pressure snubber protects the measuring cell in demanding hydraulic applications
  • Features stainless steel measuring cell
  • Housing has gel filling that encapsulates pressure transmitter, preventing product failures caused by internal condensation
  • Process connections and robust electrical circuits ensure long service life
