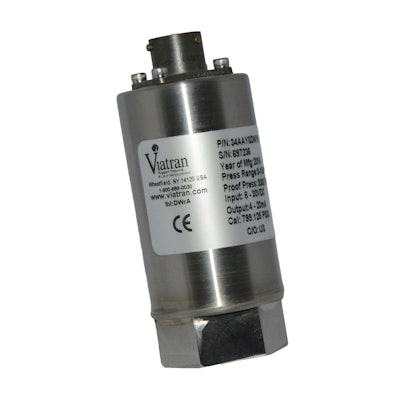

Viatran Model 24A/34A Series Pressure Transmitters

The Model 24A/34A Series pressure transmitters from Viatran feature all stainless steel housings and wetted parts for resistance to humidity and corrosion.

Viatran 24A 34A Series 57d17240a41b7

Viatran announces the global market introduction of its Model 24A/34A Series of general purpose industrial pressure transmitters.

  • Designed for optimal application versatility and reliability
  • Rugged construction features all stainless steel housings and wetted parts for high resistance to humidity and corrosion
  • Offers choice of 34 unique standard ranges, with available selections between 3 and 5,000 psi (0.2 and 345 bar)
  • Choices of gage, sealed gage, absolute and vacuum pressure types also available
  • Compact and lightweight (10 oz/283 g), facilitating ease of installation within space constrained environments
  • Model 24A Series feature 0-5V DC output signal
  • Model 34A Series features 4-20 mA output signal
  • Nonlinearity specification of ≤±0.25% is standard, with optional improvement to ±0.15% or ±0.10% (BFSL)
  • Choices of electrical connectors include weather-resistant industry standard DIN 43650 connector, 6-pin Bendix connector, direct coupled cable, and others
  • Isolated shunt calibration, extended temperature performance and zero adjustment are also optional
  • Available accessories include direct mount digital indicator and power supply, mating electrical assembly, and ruggedized connectors and cables
  • Special configurations, ranges, outputs, formats and connectors are available upon request
  • Typical applications include engine test stands, diesel engine internal combustion, emissions testing, production test stands, compressors, pumps, hydraulics and off-highway vehicles
