Endevco Model 8530C Series

Meggitt Sensing Systems introduces its Endevco high-sensitivity absolute pressure transducer series.

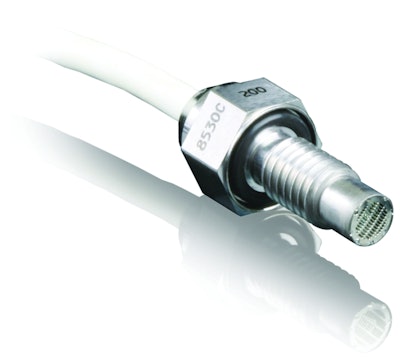

Meggitt Endevco 8530c Series 10218273

Meggitt Sensing Systems, a Meggitt group division, has introduced the Endevco Model 8530C Series, a family of high-sensitivity piezoresistive absolute pressure transducers, offering high output and a non-linearity of 1% at 3x over-range in a highly compact (3.86 mm face diameter) package.

  • Ideal for use in hydraulic and pneumatic pressure measurements, and transmission testing applications
  • Offered in ranges of 15, 50 and 100 psia with 225 mV full scale output and high resonant frequencies of 180 kHz (15 psia), 320 kHz (50 psia) and 500 kHz (100 psia)
  • Active four-arm strain gauge bridge, diffused into a sculpted silicon diaphragm, for maximum sensitivity and wideband frequency response
  • Volume behind the diaphragm is both evacuated and glass sealed to provide an absolute pressure reference
  • Integral temperature compensation, providing stable performance over a temperature range of -18 to 93 C (0 to 200 F)
  • Units are supplied with an integral cable, with custom lengths available upon request
  • 10-32 UNF-2A mounting thread is standard, with an integral four-pin connector available with the “M37” option
  • Rugged to 20,000 g shock
  • Minimum 4X burst pressure with non-linearity, non-repeatability and pressure hysteresis errors of less than 0.50% FSO for all ranges
  • Recommended accessories include the model 136 three-channel signal conditioner, model 4430A signal conditioner, or model 4990A
