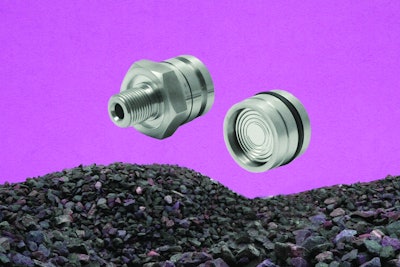

SSI Stainless Steel Pressure Sensors

First Sensor's SSI stainless steel OEM pressure sensors accurately measure gage or absolute pressures over a wide range of temperatures. The pressure sensors work with many applications such as industrial measurement and control, medical devices and instrument equipment.

• Measures in pressure ranges from 200 mbar up to 35 bar
• Achieves Total Error Band better than ±1.5% FSS over a temperature range of -20 to 85 C
• Utilizes precision digital signal conditioning
• Provides analog 0.5V to 4.5V output as well as I²C or alternatively SPI interfaces at same time
• Fully welded, media isolated construction allows compatibility with corrosive liquids and gases
