TX200H Smart Pressure Transmitter

United Electric Controls introduces its TX200H smart pressure transmitter which offers a small footprint to fit into tight spaces.

Tx200hhires 10683966

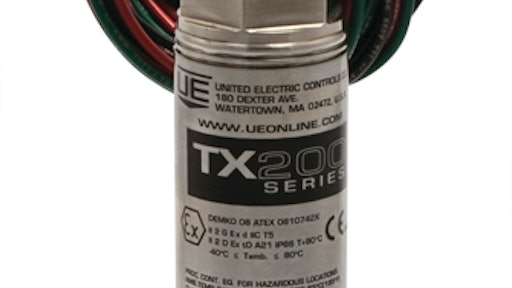

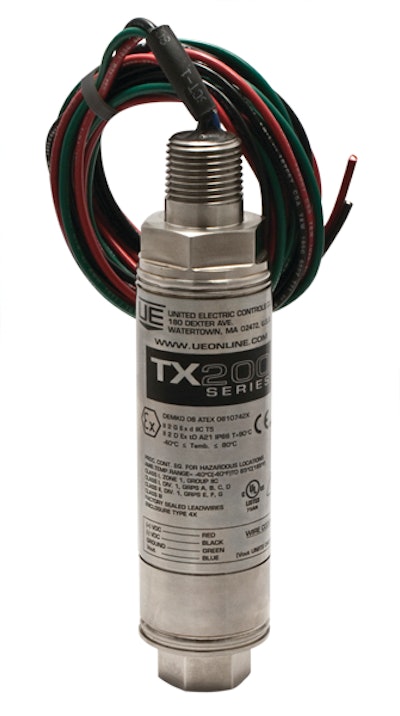

United Electric Controls (UE) introduces the TX200H, a HART smart pressure transmitter for shale oil and gas applications.

  • Provides very small footprint to fit tight spaces
  • Utilizes latest HART 7 specifications to reliably communicate asset management data while providing simplified field adjustment¬†
  • Flexible 10:1 turndown ranges from 0 to 15 psi (0 to 1 bar) up to 0 to 25,000 psi (0 to 1,724 bar)
  • Can be ranged as needed to meet customer requirements
  • Features construction from 316 stainless steel
  • Welded and hermetically sealed to meet enclosure type 4X and IP66 requirements
  • Rugged design allows mounting directly onto processes or panel mounting within control panel
  • Standard approvals include cULus for Class 1, Division 1 and 2, Zone 1 and ATEX Ex d and Ex tD hazardous areas
  • CE compliant to both PED and EMC directives
  • Real-time diagnostics through HART 7 reduces maintenance costs by reporting device health status and process performance
  • HART communication is superimposed over 4-20 mA signal, enabling use of existing wiring
  • Communicates with handheld device or PC equipped with commercially available HART software
