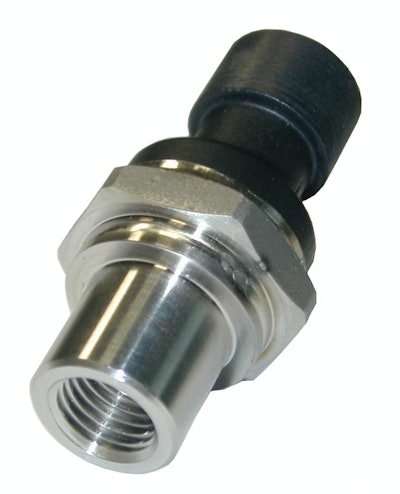

M7100 Pressure Transducer

Measurement Specialties introduces its M7100 pressure transducer which offers a pressure range up to 43,000 psi.

Measurementspecialtiesm7100pre 10708826

Measurement Specialties, Inc. has released its M7100 pressure transducer for high volume industrial, engine and vehicle markets.

  • Offers pressure range up to 43,000 psi (3000Bar)
  • Features operating temperature from -40 C to 125 C
  • Pressure cavity is machined from a solid piece of 17-4 PH stainless steel so no o-rings or organics are present that could be exposed to pressure media
  • Includes 0.5 to  4.5V DC ratio metric output
  • Exceeds industrial CE requirements including surge protection and provides overvoltage protection to 16V DC for both positive and reverse polarity
  • Withstands up to 50g shock, 20g vibration
  • Offers excellent stability and has an accuracy of 0.25%
  • Core pressure sensing technology, known as Microfused, is accompanied by packaging technology to improve hydraulic shock protection
  • Electronics ensure signal integrity in electrically noisy applications
  • Total packaging size has been minimized and internal connections eliminated to further improve vibration and shock performance
