Model S Series Subminiature Pressure Transducers

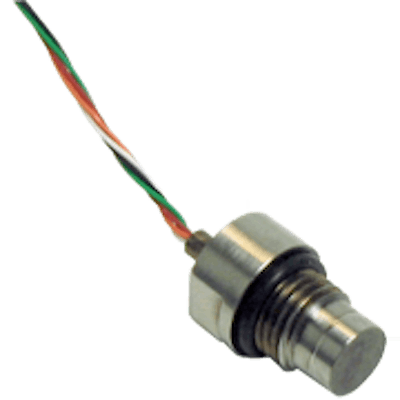

Honeywell Model S Pressure 10987398

Featuring 1% accuracy, Honeywell Sensing and Control’s Model S Series of subminiature pressure transducers fit into tight spaces with little clearance, and accurately measure pressure ranges from 100 to 15,000 psi.

  • Designed to handle high pressure and temperatures, with a high natural frequency and flush diaphragm for applications such as engine and transmission test stands, pressure brake testing, and hydraulic sensor testing
  • Gauge-only subminiature pressure transducers have high natural frequency and utilize a flush diaphragm that is manufactured from 17-4 PH stainless steel
  • Temperature-sensitive components located inside the transducers
  • Transducers have a small electrical zero balance circuit board which is in the lead wire (approximately 1 in x 0.087 in. thick)
  • All transducers have four active bonded strain gauges arranged in a Wheatstone-bridge configuration
  • OutPut - 2 mV/V
  • Operating temperatures -54 to 149 C (-65 to 300 F)
  • Electrical Termination - Four twisted leads (1.83 m [5 ft.]) with external balance board
  • Overload, Safe - 50% over capacity
  • Overload, Burst - 400% full scale
