86BSD Pressure Sensor

The Measurement Specialties' 86BSD pressure sensor supports I2C and SPI interface protocols.

Measurementspecialties 86bsdpr 11303422

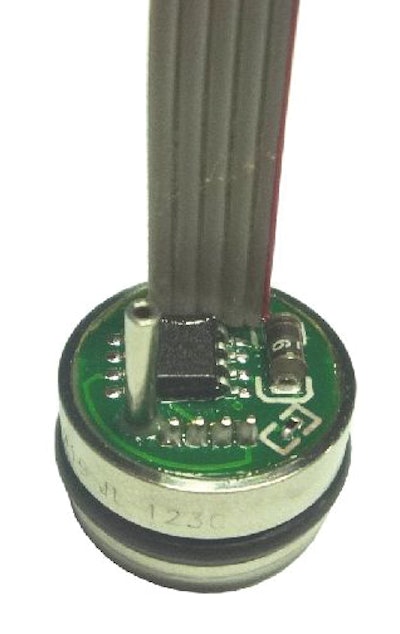

The 86BSD from Measurement Specialties is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing.

  • 14-bit digital output
  • Supports I2C and SPI interface protocols
  • May come in a 3.3 or 5.0V DC supply voltage
  • Designed for o-ring mounting
  • Sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element
  • For high performance, low pressure applications
  • Custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10 to 90% or 5 to 95%
  • Features ±0.1% non-linearity and ±1.0% Total Error Band
  • Cable/connector and low power options are available
