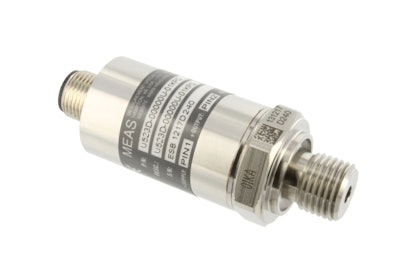

U5200 Pressure Transducers

The U5200 Pressure Transducers from Measurement Specialties feature high accuracy and quick turn around for use in demanding applications.

Measurmentspecialties U5200hig 11456615

Measurement Specialties' U5200 pressure transducers from the UltraStable line, with their modular design, offer maximum flexibility for different configurations.

  • Features high accuracy and a quick turnaround for demanding commercial and heavy industrial applications
  • Suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam and mildly corrosive fluids
  • Wetted material is made of 316L stainless steel and the transducer’s durability is excellent with no o-rings, welds or organics exposed to the pressure media
  • Weatherproof and exceeds the latest heavy industrial CE requirements including surge protection
  • Circuit is protected from reverse wiring at input and short circuit at output
  • Custom designs available
  • Features 10 V/m EMI protection
  • Includes reverse polarity protection on input and short circuit protection on output
  • Offers up to ±0.1% accuracy and up to ±0.75% Total Error Band
  • Operating temperature range is -40 to 125 C
  • Applications include use in off-road vehicles, hydraulic/pneumatic systems, agriculture equipment, and energy generation and management
