Measurement Specialties MS5637-30BA Miniature Industrial Pressure Sensors

Measurement Specialties' MS5637-30BA pressure sensors are optimized for use in air pressure measurement systems.

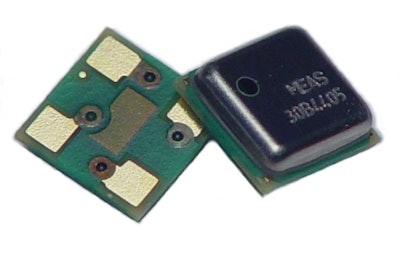

MeasurmentSpecialties MS5637 30BAPressureSensor 5637b0089c0d8

The MS5637-30BA from Measurement Specialties is a line of high resolution miniature industrial pressure sensors with an I2C bus interface.

  • Optimized for air pressure measurement systems with a resolution of 0.5 mbar
  • Includes highly linear pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory calibrated coefficients
  • Provides precise digital 24 bit pressure and temperature value and different operation modes that allow user to optimize for conversion speed and current consumption
  • High resolution temperature output allows implementation of pressure measurement systems and thermometer function without any additional sensor
  • Can be interfaced to virtually any microcontroller
  • Features simple communication protocol that does not require programming of internal registers
  • Anti-magnetic stainless steel cap protects pressure die
  • Supply voltage is 1.5 to 3.6V
  • Offers fast conversion down to 0.5 ms
  • Operating range is 0 to 30 bar, -20 to 85 C
  • No external components (internal oscillator)
  • Applications include use for tire pressure monitoring
