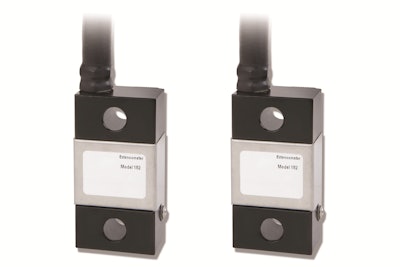

VPG Transducers Model 182 Extensometer

The VPG Transducers Model 182 extensometer features a high-quality strain gage sensing element and is IP67 rated for use in harsh operating environments.

Vpg Transducers Model 182 Extensometer 594bed6e225c4

The VPG Transducers brand of Vishay Precision Group Inc. announces the global market introduction of its Model 182 extensometer, a specialty high-performance strain gage-based force sensor.

  • Expressly designed for industrial EN15000 and EN280 compliant off-highway vehicle and equipment safety applications
  • Accurately measures deformation, or changes in length of solid structural body, with 500 μƐ full-scale sensing range and necessary redundancy for EN15000 and EN280 compliance in safety applications
  • Robust design
  • Consists of high-quality strain gage sensing element, housed in highly corrosion resistant coated alloy steel, with mounting via two bolt holes (M10 12.9 required)
  • Units are IP67 rated for dust and moisture protection
  • Multiple output choices, including mV/V, 4-20 mA and 0-10V, are available as standard, along with alternate connection options
  • Option of either CANopen or SAE J1939 protocol
  • Choice of DT or M12 connector
