Inelta ILAT Series Miniature LVDT Sensors

Inelta's ILAT Series Miniature LVDT Sensors have compact dimensions and provide a linearity tolerance of

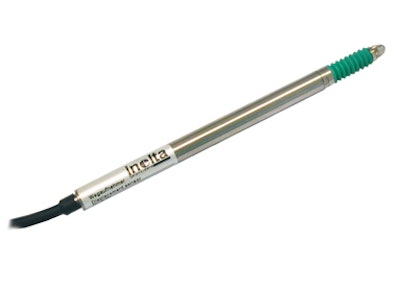

Ilat 304dpi Lr 594bf3a800a7f

The Inelta ILAT Series Miniature LVDT (Linear Variable Differential Transformer) Sensors provide precision measurements of position and path in the range of single-digit millimeters.

  • Available in Models ILAT 2, ILAT4 and ILAT10
  • Provides exact measurements of ±1 mm (0.039 in.), ±2 mm (0.078 in.) or ±5 mm (0.19 in.) traveling distances
  • Tiny dimensions, with housing length of 79 mm (3.1 in.) and diameter of 8 mm (0.3 in.) and weight of 30 g (including cable; 1.06 oz.)
  • Operates free from wear
  • Provides linearity tolerance of <0.25%
  • Available with smaller linearity tolerance of <0.1%
  • Robust design with stainless-steel housing in protection class IP65, optionally also in IP67
  • Nominal temperature rating is 0– 70 C (32-158 F)
  • Linear guiding operates by virtue of locking mechanism of probe and provides more than 10 million cycles
  • Suitable for many applications, including engineering, agriculture and navigation
