Novotechnik RFC4800 Series Touchless Rotary Angle Sensors

Novotechnik's RFC4800 Series sensors features a magnetic pickup to provide touchless measurement over a range of 0-360 degrees.

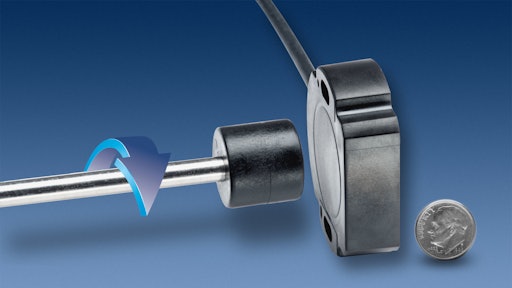

Rfc4800 Nr 58f6348b38551

Novotechnik U.S. introduces the RFC4800 Series of touchless rotary angle sensors that provide absolute, rotary position.

  • Partial and fully redundant versions available
  • ISO-pulses and ISO 11452 tested for safety and mission-critical applications
  • Utilizes magnetic pickup to provide touchless measurement range of 0-360 degrees
  • Capable of measuring through air and non-magnetic materials
  • Magnetic pickup mounts to shaft on user application with seven different size markers available for dimensional flexibility and optimized detection for different applications
  • Includes ingress protection from liquids and dust to IP69K standard
  • Provides resolution of 14 bits
  • Repeatability of 0.36 degrees and independent linearity of ±0.5%
  • Features built-in customization capability
  • Offset, scale, direction of rotation, steps over position measurement range, reporting of speed by channel, limit switches and initial state, as well as baud rate, are all factory programmable
  • Analog and digital output versions include CANOpen and IO-Link
  • Operating temperature range of –40-125 C (-40-257 F)
  • Cable and connector versions available
