Novotechnik ML Series Multi-Turn Rotary Sensors

The Novotechnik ML Series of Multi-Turn Rotary Sensors includes a friction clutch which produces a click sound to let users know they have reached end-of-range.

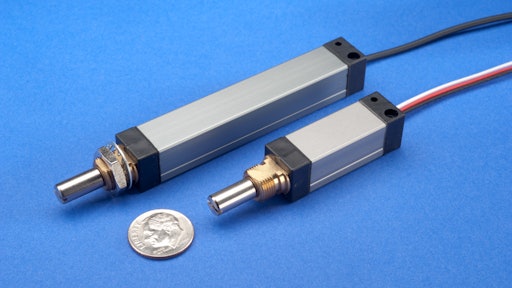

Ml Pr+dime

Novotechnik U.S. introduces the ML Series of Multi-Turn Rotary Sensors.

  • Features unique friction clutch instead of end-stops typically found on mechanical multi-turn sensors
  • Clutch produces a click sound to let users know they have reached end-of-range and permits continued turn past end-scale
  • Compact in size
  • Features 1/2 in. (12.7 mm) square profile
  • Models with 6, 10, 25, 50 or 100 turns,
  • Bushing mounting and sealing to IP65
  • Life is >15 million turns
  • Linearity is ±0.25% of full scale range
  • Resolution is better than 0.1% with repeatability of ≤ 0.17%
