Novotechnik RFX 6900 Series of Touchless Rotary Sensors

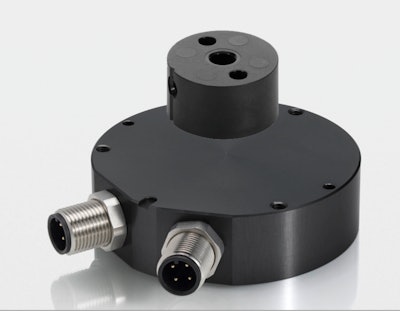

The Novotechnik RFX 6900 Series touchless rotary sensors feature an anodized aluminum housing sealed to IP67 or IP69K, depending on version.

Novotechnik

Novotechnik U.S. introduces the RFX 6900 Series of touchless rotary sensors.

  • Designed for use in mobile, safety-related and extreme environment applications
  • Housing is anodized aluminum and sealed to IP67 or IP69K—depending on version
  • Conforms to ISO 13849 for safety related applications
  • MTTF is 46-92 years—depending on version/channels
  • Housing dimensions: diameter is 69 mm (2.7 in.) and height is 20.4 mm (0.8 in.)
  • Electrical angular range is 0-360 degrees with single and fully redundant versions
  • Maximum independent linearity of ±0.5% of full scale
  • Measuring ranges include 0-60, 120, 180, 240, 300 and 360 degrees
  • Output options are 4-20 mA and CANopen
  • Resolution is 14-bit for CANopen version
  • Operational speed is unlimited mechanically, and update rate 1 and 5 kHz for CANopen and analog versions respectively
  • Shock is up to 50 g and vibration is up to 20 g
