POSITAL Through-Hollow Incremental Encoders

The POSITAL through-hollow incremental encoders can be used to monitor rotary motion in wide variety of machinery.

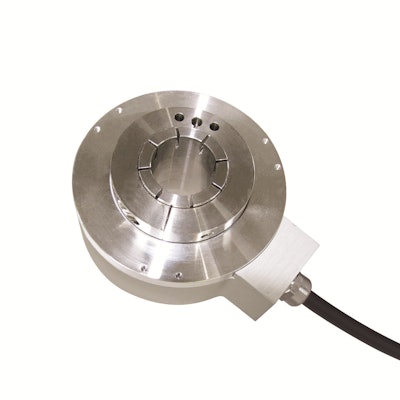

Press Photo through Hollow Encoder Posital
POSITAL FRABA 56cf5586b503f

POSITAL has extended is portfolio of rotary encoders with a family of through-hollow incremental encoders.

  • Designed to be installed with machine shaft passing through sensor
  • Can be used to monitor rotary motion in wide variety of machinery
  • Offers cost-effective, space-saving solution
  • Can easily be installed between body of motor and other components mounted on the shaft
  • Available for shaft diameters ranging from 3/8 in. (9.5 mm) to 1-3/4 in. (44.5 mm)
  • Smaller units (up to 14 mm [0.6 in.] shaft opening) have external diameter of 2-1/4 in. (58 mm)
  • Larger units (5/8 [15.9 mm] to 1-3/4 in. shaft size) have external diameters of 3 or 4 in. (77 or 100 mm)
  • Available resolutions extend from 360-4096 PPR (pulses per revolution)
  • Features rugged aluminum housings and environmental protection rated at IP65
  • All variants are available with variety of communications interfaces, including RS422 (TTL) 5V or 11-30V and Push-Pull (HTL, 5-30V)
  • Connection options include built-in cables or MIL-type connectors
