Sensata MHM5 and MHK5 Multi-Turn Absolute Encoders

The MHM5 and MHK5 encoders feature Ethernet/IP or Profinet interfaces for use in advanced industrial and mobile equipment applications.

Sensata Mh Series Encoders Small
Sensata 10915639

Sensata Technologies introduces the MHM5 and MHK5 Absolute Multi-Turn encoders with either Ethernet/IP or ProfiNet interfaces for Factory 4.0 applications.

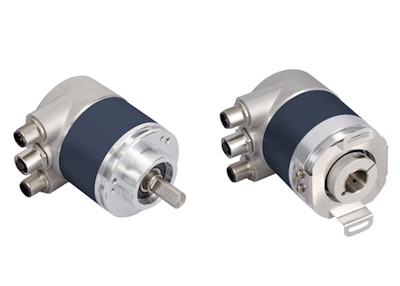

  • Available in either shafted (MHM5) or blind shaft (MHK5) configurations to provide additional design flexibility
  • Provides up to 16 bits per turn and 14 bits of turns counting
  • Compact packaging allows easy integration into existing designs
  • Wide operating temperature range -40-85 C (-40-185 F)
  • Features IP65 rating
  • Includes geared turns counter that is immune to electrical or magnetic interference
  • Reverse polarity and short circuit protection included as standard
  • Ensures highly reliable and accurate speed and position sensing across many industrial and mobile equipment processes
  • Bus compatibility enables collection of detailed data required for next generation applications
  • Withstand shock and vibration
