SIKO SG61 and SG121 Wire-Actuated Encoders

SIKO will debut the SG61 and SG121 encoders, featuring measurement lengths up to 6 and 12 m, at bauma 2019.

Siko Sg61and Sg121 Encoders
Siko 591ddf9bc6627

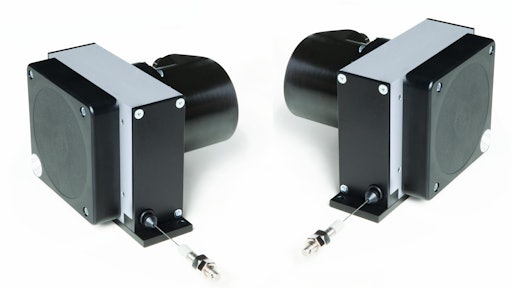

SIKO introduces the SG61 and SG121 wire-actuated encoders.

  • SG61 measure lengths up to 6 m (236.2 in.)
  • SG121 measures up to 12 m (472.4 in.)
  • Features compact size, sturdiness and flexibility
  • Installation depth of 70 x 85 x 105 mm (2.8 x 3.3 x 4.1 in.)
  • Robust aluminum housing, coupled with impact-resistant plastic, survives in harsh operating conditions
  • Operating temperature range of -40-80 C (-40-176 F)
  • Resistant to high shock and vibration loads, dirt, dust and water
  • Version with integrated water drain holes to prevent water that penetrated sensor from freezing available for outdoor applications in low temperature ranges
  • Flexible 58-mm (2.3-in.) flange system in both wire-actuated encoders can be used with almost any interface
  • Customers can select incremental interface such as HTL or TTL, or absolute interface such as analog, SSI, CANopen, SEA J1939, CANopen Safety, Fieldbus or Ethernet
  • Wire outlet with Wire-Flex technology ensures wear on wire is kept to a minimum, even if it pulls out at an angle
  • Conical shape of wire outlet and various types of wire ensure any deposits on wire can be removed easily
  • Automatically compensates for mechanical tolerances in machine or vehicle, and protects function and service life of the system
  • Provides increased safety in combination with redundant WV58MR safety rotary encoder and can be used in the overall system in applications up to performance level d (PLd)
