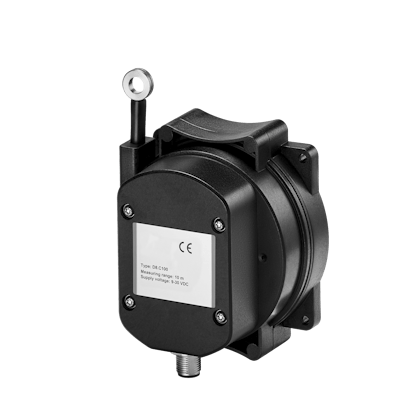

Turck DW108 and DW124 Draw Wire Encoders

Introduced at IFPE 2020, the DW108 and DW124 encoders feature an integrated inclinometer to help save on installation space.

Turck Draw Wire

Turck announces the release of two draw wire encoders, the DW108 and DW124.

  • Features integrated inclinometer which suits use in material handling applications
  • Provides length and inclination measurement in one device
  • Ruggedly designed
  • Delivers accurate measurement for range of applications such as tilt and angle measurement for fork trucks or lifts to ensure precise positioning of loads
  • Offers easy integration into new or existing applications due to space-saving design with integrated inclinometer
  • Includes IP67 rating
  • DW108 has measuring range up to 1-5 m (3.3-16.4 ft.)
  • DW124 measuring range is 6-10 m (19.7-32.8 ft.)
  • Shock and vibration resistant
  • Connection is easy with 5-pole M12 connector and supply voltage of 5-30V DC or 9-30V DC
