Novotechnik Vert-X 37E Series Programmable Touchless Rotary Sensors

The Novotechnik Vert-X 37E Series of programmable touchless rotary sensors feature various output options and compact dimensions.

Novotechnik

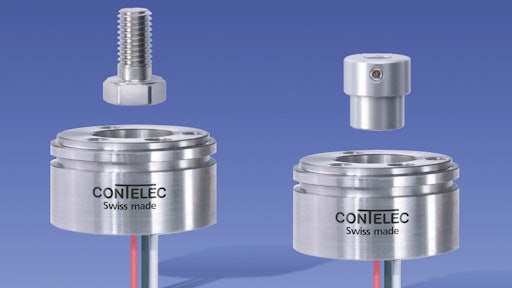

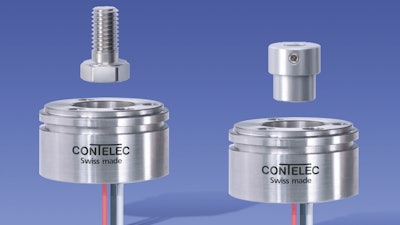

Novotechnik U.S. introduces the Vert-X 37E Series of programmable touchless rotary sensors.

  • Uses magnetic pick up that is secured to the rotating object so that there is no direct mechanical linkage between shaft and measuring system, and therefore no wear
  • Hermetically sealed to IP68, without any moving seals, to provide long life even under the harshest water, dust and oil environments
  • Can be programmed by customers or at the factory for slope of the linear output, zero and end-points, mid-point and switch steps, so customers can order angle sensors optimized for their specific application
  • Eliminates need for other components to specify the angle end points, choose an intermediate plateau, sense of rotation function, CW or CCW or create V-output
  • Features 0-360 degree measurement range limits
  • 5 and 24V supply versions
  • Up to two switch outputs
  • Resolution to 14-bit, linearity is ≤ ±0.3% and repeatability of ≤ 0.1 degree
  • MTTF is over 50 years
  • Output options include 4-20 mA, 0.1-10V, 0-4.5V, 10-90% of supply voltage, SPI, and PWM
  • Redundant output versions available
  • Absolute sensor design to retain values even after power interruptions
  • Compact design of 1.45 in. (3.7 cm) diameter
