OPTOCODE Absolute Rotary Encoders

OPTOCODE single- and multi-turn rotary encoders provide extraordinary accuracy and a wide range of communication options.

June 21, 2010

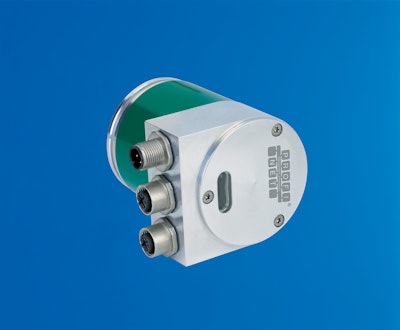

P 113 4c 10147703

POSITAL FRABA 56cf5586b503f

POSITAL announces that its OPTOCODE rotary encoders with PROFINET IO interfaces are now certified for IRT (isochronous real-time) data transfer protocols.

Support RT and NRT (real-time/non-real-time) data transfers
Cycle times as low as one millisecond
Unit parameters are set via the control system with the use of a GSDML device file
Bootloader enables the installation of firmware updates via FTP
Integrated switch automatically recognizes crossover or standard Ethernet cable connections
58 mm in diameter
Don't require a connection cap, terminating resistors or switches for address allocation
Operate without backup batteries
Instantly report current absolute position values, even after startup or power failure
Available with special casings for demanding environments

Fill out the form below to request more information about OPTOCODE Absolute Rotary Encoders
