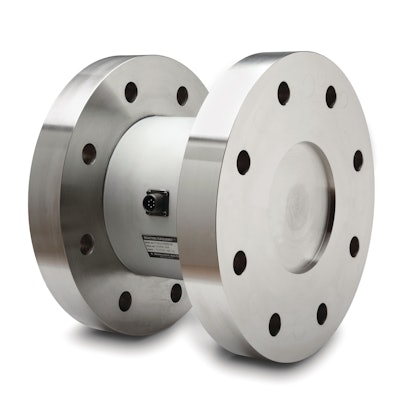

New models 2206 and 2207 solid flanged reaction torquemeters from S. Himmelstein offer certified accuracy. Their high stiffness and ability to handle large extraneous loads (thrust and bending) minimizes crosstalk errors. Reaction torquemeters are an economical solution where inline measurements are required but where angular motion is restricted and cycle rates are low.
- Accurately measure static and dynamic torque of rotating and non-rotating drivelines
- Wide use in industrial torque measurement and control applications including use for valve actuators, servo valves, hydraulic motors and stepper motors
- Torque ranges are from 300,000 to 750,000 lbf-in., with either ±2 mV/V or ±10V output.
- All units are calibrated CW and CCW to rated load
