non-contacting MTS 360 SMD Rotary Position Sensor

Piher offers a non-contacting rotary position sensor.

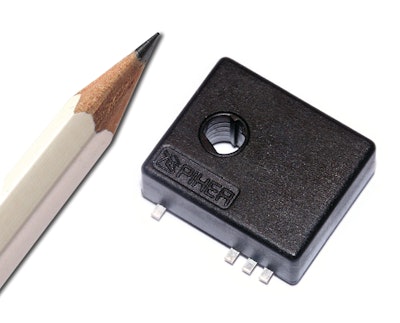

Pihermts3 10176322

Piher North America offers the non-contacting MTS 360 SMD rotary position sensor, which combines a through-shaft design with 360 degree absolute position feedback in an ultra-miniature size.

  • Tiny: 6mm x 17mm x 18mm (HxWxL)
  • Hall effect technology enables true non-contacting through-hole shaft sensing using standard SMD (surface mount device) features
  • Standard model features a 4mm double D-flat shaft and an (8) pad SMD footprint that is compatible in most reflow soldering systems
  • Rated for use at -40ºC to +150ºC, the sensor can operate up to 300 rpm
  • Output is selectable between analog, PWM 12 bits or Serial Protocol (SPI) at 14 bits and includes a second output channel to provide a programmable switch signal
  • Redundant version with dual core sensor available
