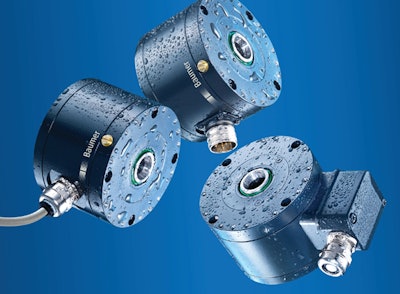

HOG 86 Redundant Optical Incremental Encoders

Baumer's HOG 86 series of encoders are durably built to resist corrosion and withstand heavy-duty applications.

Hog86 10655827

For applications where reliable motor/generator feedback and speed and position control are essential, Baumer has introduced the HOG 86 family of redundant optical incremental encoders.

  • Features IP66 rating to withstand heavy-duty applications
  • Die cast housing treated with coating delivers C4 protection against corrosion
  • Operates in ambient temperatures from -40 C to 100 C
  • Terminal box version features separate compartment with encapsulated electronics to protect against water and humidity even while cover is open for installation
  • Bearings are protected against inductive shaft currents
  • Optional long-life ceramic hybrid ball bearings provide up to 100,000 hours of longevity
  • Offers optional integrated Enhanced Monitoring System (EMS) to continually monitor functionality across entire speed range
  • Outputs digital and visual LED warnings in event of failure
  • Provides easy and automatic remote failure analysis and simplified encoder analysis for immediate error identification and quick system reboots
  • More than 20 sophisticated and flexible connection options are available, including terminal box, M23 connector, cable and fiber optic versions
  • Terminal box version can be rotated 180 degrees to facilitate installation
