EEx OG 9 Heavy-Duty Encoder

Baumer's heavy-duty encoder, the EEx OG 9, is explosion-protected and features IECEx certification.

October 10, 2012

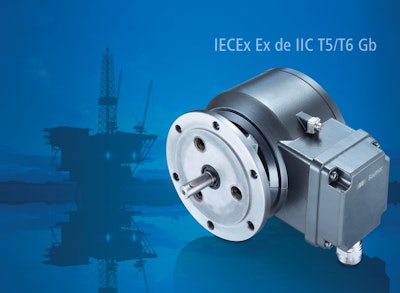

Baumer Bild Eex Og9 10812164

The heavy-duty encoder EEx OG 9 by Baumer is the first explosion-protected Baumer encoder with IECEx certification.

Pressure-tight encapsulated housing provides enhanced safety and is compliant to both ATEX safety directive 94/9/EG for hazardous explosive atmospheres and IECEx
An internationally standardized product
Utilizes optical sensing system
Provides 16 to 5.000 ppr, depending on the configuration
Sine signal configuration with patented LowHarmonics technology ensures signal quality
Robust housing is made of high-quality pressure die-cast aluminium and comes with 11 mm stainless steel shaft
Terminal box is rotatable through 90 degrees for ease of installation
Protective terminal cover is compliant to "EX e"
IECEx system ensures mutual recognition and adoption of testing standards and certifications relating to electrical equipment for use in explosive atmospheres
