IXARC Magnetic Encoders

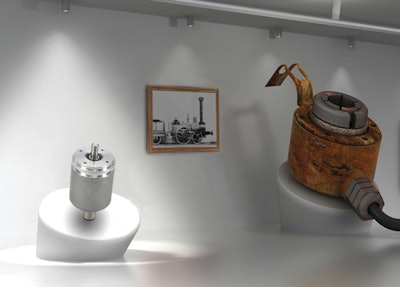

The IXARC ULTRA magnetic encoders from FRABA feature a battery-free design for a longer lifespan.

Fraba Ixarcultramagneticencode 11213471
POSITAL FRABA 56cf5586b503f

Meeting the high performance of an optical encoder, but in a smaller size, FRABA POSITAL IXARC ULTRA magnetic encoders can replace most optical encoders in almost all applications, even in dynamic situations like motor feedback applications.

  • Provides contact-free measurement
  • Available with incremental and SSI interfaces
  • Offers realtime 16 bit resolution
  • Features 12 bit accuracy and up to 38 bit revolutions
  • Compactly sized down to 36 mm diameter
  • Different mechanical options are available
  • Provides incremental interface with A, B, Z, and inverted signals available as HTL (Push-Pull) or TTL (RS422)
  • Offers choice of any integer pulse count up to 16,384 pulses per revolution
  • Enables full control of signal processing
  • Depending on the application, it is possible to adjust all relevant parameters without any costly changes to the hardware
  • Features battery-free design for longer lifetime without maintenance
  • since batteries are the most common cause of poor reliability for such devices.
  • Offers 100% absolute measurement and continues to record rotations even if no power is supplied
  • Provides output signal right after activation
  • Gearless mechanics makes wear free and able to withstand high shock and vibration conditions
