IXARC Rotary Encoders

POSITAL-FRABA introduces the IXARC rotary encoders which include a four-element Hall-effect magnetic sensor linked to a 32-bit microprocessor to offer high levels of accuracy and dynamic response.

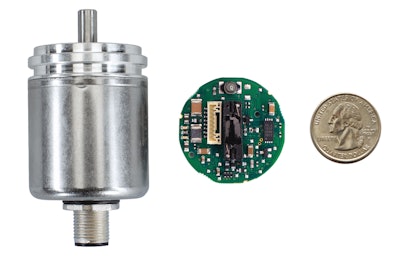

Frabaposital Ixarcencoder 11238966
POSITAL FRABA 56cf5586b503f

POSITAL-FRABA has the IXARC rotary encoders, which combine the accuracy and dynamic response of optical encoders with the ruggedness and compact form factor of magnetic encoders for true ‘go anywhere, do anything’ performance.

  • Features four-element Hall-effect magnetic sensor linked to a 32-bit microprocessor running highly-optimized signal processing software
  • Offers levels of accuracy and dynamic response that previously required larger, more mechanically complex optical encoders
  • Compactly designed
  • Ability to survive dust, moisture, and severe shock and vibration loading enables installation virtually anywhere
  • Microprocessor-centered design ensures operating parameters such as zero-point, rotational direction and sensitivity can be modified through simple software updates
  • Dynamic response of measuring components makes it possible to offer both incremental and absolute versions
  • Incremental versions are typically used in speed monitoring applications, while absolute encoders – including multi-turn models - are best suited to position measurement in motion control systems
  • Available with a wide range of packaging and interface options, including a variety of instrument interfaces, mounting arrangements, housing materials and shaft seals
  • Special explosion-proof and safety-rated models are also available
