UBIFAST Programming Tool

The UBIFAST configuration tool from POSITAL enables users to modify the characteristics of their IXARC Series encoders to meet application-specific needs.

Posital UBIFAST Programming Tool 5501f02acb215
POSITAL FRABA 56cf5586b503f

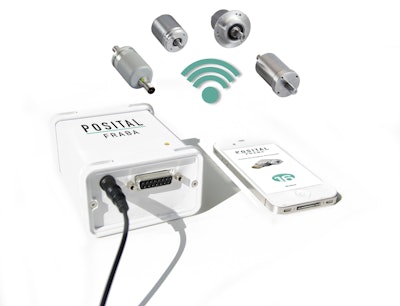

POSITAL introduces the UBIFAST configuration tool, offering powerful programming capabilities for the IXARC Series of rotary encoders.

  • Extensively modifies performance characteristics of POSITAL encoders through software changes without requiring changes to physical components
  • Increases versatility of these devices
  • Connects to programmable encoders through an accessory cable
  • Features built-in WiFi hotspot and webserver
  • Able to connect to smartphone, tablet or laptop computer via WiFi once connected to encoder and powered up
  • Configuration interface will automatically open up in a standard web browser window without the need for an app, software installation or Internet connection
  • User is guided through the configuration process in a few simple steps
  • Programming takes just a few minutes once the incremental parameters (pulses per revolution, pulse direction and output driver) and/ or absolute parameters (resolution, number of turns, code, SSI direction and preset value) have been selected
  • Internet-enabled configuration management system for programmable sensors is available to help users and distributors keep track of how each device has been set up
  • Whenever a device is reconfigured, operator has the option of registering the changes with POSITAL through an automatic email interface and the change will update the configuration history of the device, identified by serial number, in a database maintained by the company
  • If a replacement is required, this record can be retrieved and used to build a sensor with identical configurations
