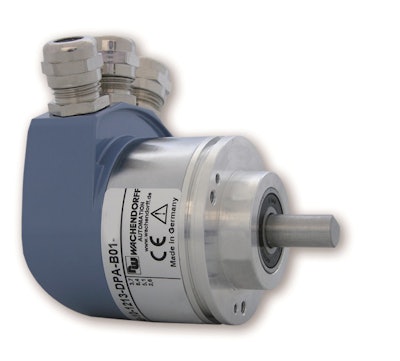

WDGA-I/O Absolute Encoder

The WDGA-I/O absolute encoder from Wachendorff integrates I/O technology directly into the encoder to provide reliable and accurate measurements.

Wachendorff Wdgaioencoder 2 11248217
Topcon Logo Wide Blue Black 58e247206fc99

With the WDGA-I/O absolute encoder?, Wachendorff has integrated I/O technology into an encoder while still maintaining compact installation space.

  • Features EnDra technology
  • Offers all functionalities of encoder for CANopen via a CAN node and information on digital or analog values via a further node
  • All functionalities are designed to operate reliably and accurately over a temperature range of -40 to 85 C
  • Features robust construction
  • Bearings are sealed to IP65 (IP67 optional)
  • IP67 rating on the back and high permissible axial and radial bearing loads of 220 N (400 N optional)
  • Multi-functional encoder enables reduction in cost of installation and wiring
  • Allows connection of analog/digital sensors to CANbus in simple and cost-effective way
  • Allows large number of combinations
  • Combinations can be created by integrating up to three multi-functional inputs and outputs, each either digital and/or analog (1x four-wire, 2x two-wire) for connecting thermocouples, PT100, DMS, 0/4-20 mA or +/- 10V DC
  • Highly accurate I/O ports can be configured and scaled quickly and easily for a specific type of sensor using software
