Vert-X 51 Series Rotary Magnetic Encoders

Novotechnik's Vert-X 51 Series rotary magnetic encoders feature a measurement range of 0 to 360 degrees.

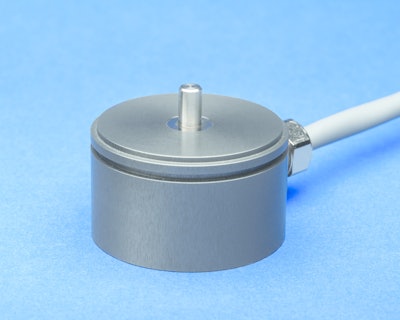

Novotechnik Vertx51rotaryencod 11299340

Novotechnik U.S. introduces the Vert-X 51 Series of rotary magnetic encoders which feature 12-, 14- or 16-bit resolution.

  • Provides repeatability to 0.36 degrees or ±0.1 degree depending on model
  • Measurement range is 0 to 360 degrees
  • Housing measures 30 x 50 mm
  • Well suited for harsh environments with ingress protection to IP67
  • Withstands shock up to 50 g and vibration to 20 g
  • Features operating and storage temperature range of  -40 to 125 C
  • Ten output options are available including 0.1 to 10V, 0.5 to 4.5V, 4 to 20 mA, CANopen, PWM, and SPI
  • Versions with 5 or 24V supplies, as well as redundant outputs, are available
  • Available with up to two TTL switch outputs
  • Some versions are programmable with CW/CCW sense of rotation, start and end points, custom characteristic curve, switches and index point
