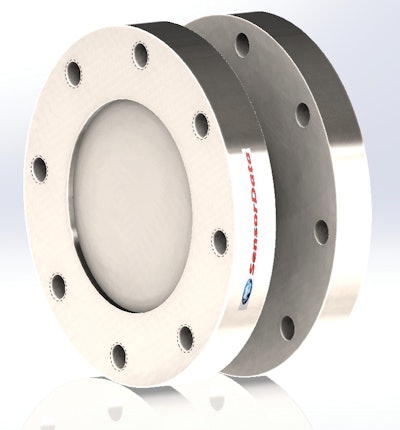

Model BT4000 Series Wireless Coupled Flange Drive Rotary Torque Sensor

SensorData Technologies' Model BT4000 sensor offers high-reliability Bluetooth wireless rotary torque sensing in high-vibration environments.

Sensordata Bt4000serieswireles 11502419

SensorData Technologies announces the global market introduction of the Model BT4000 Series Wireless Coupled Flange Drive Rotary Torque Sensor.

  • Offers high-reliability true Bluetooth wireless rotary torque sensing in extreme high-vibration environments
  • Provides highly reliable transmission of measured torque data
  • Requires relatively little installation space
  • Can measure torque up to 8,000 Nm at speeds up to 7,000 rpm with analog voltage, digital or frequency signal outputs
  • Encapsulated on-board electronics provide strain gage bridge excitation, bridge output amplification and offers amplified signal conversion into a 16-bit digital word
  • Immediate signal conversion results in significant reduction of conducted noise effects that are common within other rotary torque measurement systems
  • On-board transducer electronics also facilitate remote shunt calibration
  • Immune to EMI, ground loop interference and adjacent metal effects due to Bluetooth wireless topology and induction power supplied to the rotor
  • Optional zero-velocity speed sensor is also available
  • Supplied with a Bluetooth wireless remote base station equipped with three analog output options and a USB data port for seamless connection to a PC or other device
  • Bluetooth operates in the unlicensed 2.4 GHz ISM band and employs a frequency hopping to combat interference and fading
  • Any electronic device equipped to receive 2.4 GHz Bluetooth data can receive signals from the sensor for subsequent processing
