WDGI Series Encoders

The Wachendorff WDGI Series encoders feature an operating temperature range of -40 to 85 C and IP67 protection rating for use in harsh environments.

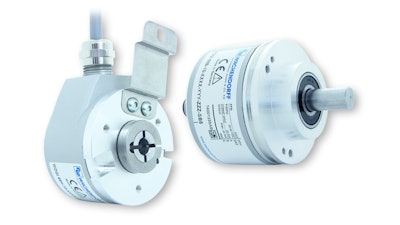

Wachendorff Wdgi Series Encoder 5488524d746b4
Topcon Logo Wide Blue Black 58e247206fc99

Wachendorff Automation has introduced its WDGI Series encoders, a completely revised version of its WDG Series incremental encoders which are based on the 58 mm size industry standard.

  • Operating temperature range for standard encoder with connector is -40 to 85 C
  • Extended temperature range can be implemented as an option for encoders with cable outlet, widening the possible range of applications without shortening the encoder‘s service life
  • Provides option of working at pulse rates from 1,200 ppr with pulse frequencies of up to 600 kHz (TTL) or 2 MHz (HTL)
  • Can deploy high pulse rates at high speeds, considerably increasing machine‘s measurement accuracy at high throughput rates
  • WDGI58D heavy-duty variant offers up to 25% higher potential bearing load than predecessor, translating into 500 N in both an axial and radial load direction to ensure sufficient reserves in extreme shaft loads
  • Self-adhesive membrane option guarantees high reliability, even when temperatures change quickly
  • Features protection rating of IP67 for resistance to harsh environmental conditions
  • Cover is made of die-cast aluminium to maintain housing's eco-friendly powder coating
  • Eyelet integrated in housing cover allows labelling strip to be attached to identify system or location
  • Use of high-quality electronics enables lifespan up to 25,000 pulses
  • Shaft is sealed to IP65
  • Immune to interferences
  • Features full connection protection at 10V DC up to 30V DC
