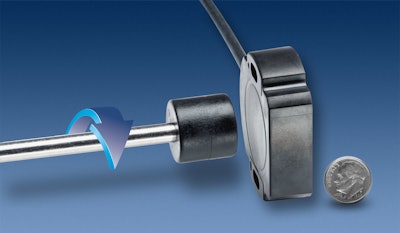

Novotechnik U.S. introduces the RFC4800 Series of touchless programmable rotary angle sensors that provide absolute, rotary position.
- Magnetic technology enables measurements through air and non-magnetic materials
- Features a CANopen ouput version that is CiA DS-301 compliant
- Utilizes magnetic pickup to provide a touchless measurement range of 0 to 360 degrees
- Includes ingress protection from liquids and dust to IP69K standards
- Provides resolution of 14 bits, repeatability of 0.36 degrees and independent linearity of ±0.5%
- Magnetic pickup mounts to shaft on user's application with seven different size markers available for dimensional flexibility and to optimize detection for different applications
- Large degree of customization is built in
- Offset, scale, direction of rotation, steps over position measurement range, reporting of speed by channel, limit switches and their initial state as well as baud rate are all programmable
- Sensors with CANopen output have operating temperature range of –40 to 105 C
- Cable and connector versions are available
