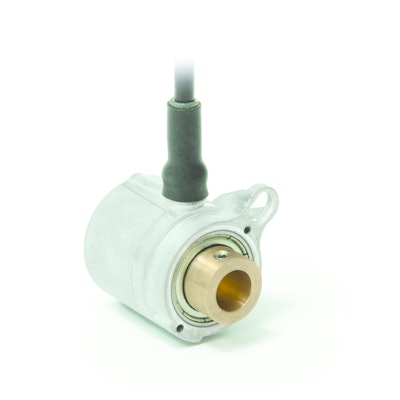

The absolute miniature single-turn AH25S rotary encoder from SIKO provides a balance between high resolution, excellent functionality, a sturdy housing design and a minimal construction form.
- Offers choice of several analog interfaces such as 4 to 20 mA, 0 to 10V or 0.5 to 4.5V, which is especially suited for agricultural equipment
- Provides advantage of using wear-free magnetic measurement principle, thus revolving an entire 360 degrees in 4,096 measurement steps
- Redundant version is also available upon request
- Packaged in a sturdy die-cast case measuring 25 mm, making it suitable for installation in limited-installation-space applications
- Features Protection Class IP65
- Temperature range from -40 to 85 C
- An 8 mm blind hollow shaft enables simple installation
- Can be manufactured with a radial cable outlet with an open cable end or corresponding customer connector
