POSITAL Explosion-Proof IXARC Rotary Encoders with Profinet Interface

POSITAL's explosion-proof IXARC rotary encoders with Profinet communications interface enable use with industrial Ethernet technologies.

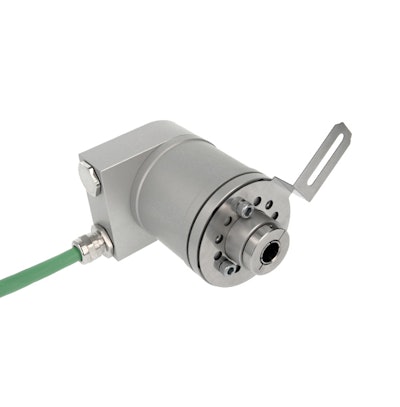

PressPhoto IXARC ATEX Profinet 57865861bf062
POSITAL FRABA 56cf5586b503f

POSITAL has added an optional Profinet communications interface to its range of explosion-proof IXARC rotary encoders.

  • Complies with ATEX/IECEx directives for Category 3 electrical products
  • Suitable for Zone 1 and Zone 21 conditions (potential exposure to hazardous levels of explosive gases and dust concentrations)
  • Built with aluminum or Type 316L stainless steel housings that are designed to contain any electrical hot spots or sparking and provide environmental protection ratings up to IP67
  • Optical measurement technology delivers up to 16-bit resolution in single-turn configurations or 14-bit resolution for multi-turn models
  • Ensures position measurement integrity is maintained even if movement occurs when system power is unavailable
  • No backup batteries are needed, reducing maintenance costs
  • Available with wide range of mounting options to ensure ready adaptability to various types of equipment
  • Profinet interface makes devices compatible with industrial Ethernet technologies
  • Integrated IRT switching capability adds flexibility when designing network topology
  • Built-in bootloader enables in-situ firmware updates, while six diagnostic LEDs simplify setup and troubleshooting
  • Available with removable connection cap, allowing users to choose between axial or radial cable exits
