Novotechnik Vert-X 51 Series Rotary Magnetic Encoders

Novotechnik's Vert-X 51 Series encoders feature a measurement range of 0-360 degrees and IP67 sealing for use in harsh operating conditions.

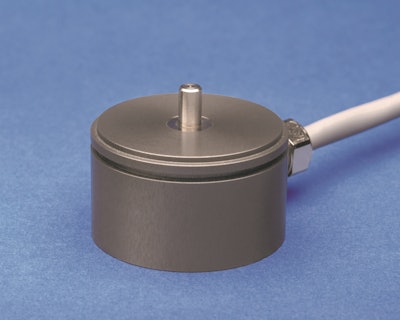

Novotechnik VertX51Encoder 57d198ae0d8a1

Novotechnik U.S. introduces the Vert-X 51 Series of rotary magnetic encoders.

  • Features up to 16-bit resolution and repeatability to 0.1 degree, depending on model
  • Measurement range is 0-360 degrees
  • Housing measures 30 mm x 50 mm (1.2 in. x 2.0 in.)
  • Ingress protection to IP67
  • Stainless steel housing and shaft are available
  • Operates with shock up to 50 g and vibration to 20 g, as well as axial and radial shaft loads to 45 N
  • Operating and storage temperature range is -40-125 C (-40-257 F)
  • Lifespan is over 200 million movements and mean time to failure is up to 668 years, depending on model
  • Eight output options are available including 0.1-10V, 0.5-4.5V, 4-20 mA, SPI, CANopen/GL certified, PWM, and SPI
  • Versions with 5V or 24V supplies, as well as redundant outputs, are available
  • Available with up to two TTL switch outputs and some versions are programmable with CW/CCW sense of rotation, start and end points, custom characteristic curve, switches and index point
