POSITAL IXARC Absolute Rotary Encoders with CANopen Interface

POSITAL's IXARC encoders with CANopen interfaces include an autobaud function for direct connection to the CANopen network.

October 28, 2016

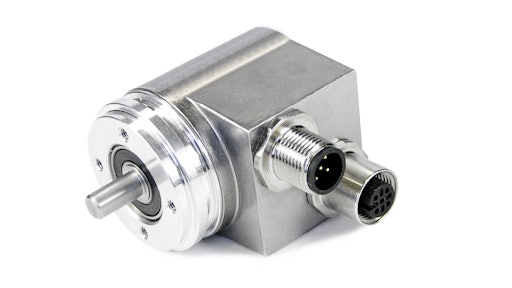

PressPhoto CANopen IXARC 5813597fa2902

POSITAL FRABA 56cf5586b503f

POSITAL’s IXARC high-precision magnetic absolute rotary encoders are now available with CANopen interfaces.

For applications in vehicles, mobile machinery, cranes, lifts and offshore equipment
Communication interface features autobaud function for direct connection to CANopen network without need to manually set transmission speeds
Single- and multi-turn models are available
Diagnostic LEDs show device status
Variety of connection options are available, including cables of various lengths and radially or axially oriented M12 or M23 connectors
Housings with bus-in/bus-out connectors are available for applications where it is convenient to connect several devices in series (daisy chain)
Optional connection cap contains three rotary switches that enable installer to define the node ID and baud-rate directly with a small screwdriver

Fill out the form below to request more information about POSITAL IXARC Absolute Rotary Encoders with CANopen Interface
