Incremental and Absolute Rotary Encoder Configurator

Wachendorff's configurator for incremental and absolute rotary encoders is cable of storing combinations of technical features and generate data sheets based on users' specifications.

Wachendorff EncoderConfigurator 54e60ca2087e7
Topcon Logo Wide Blue Black 58e247206fc99

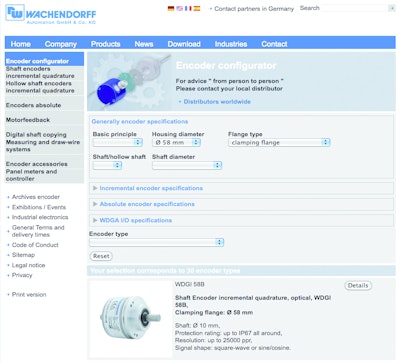

With its configurator for incremental and absolute rotary encoders, Wachendorff Automation is able to offer design engineers and developers genuine added value compared with conventional configurators of the same class.

  • Able to recall previous data
  • Programming holds a complete store of the combination of all the technical features and is capable of combining them (over 1.5 million possibilities), using an intelligent logic to manage them
  • Rules out any errors during configuration process
  • Identifies devices that may be considered after just a few entries
  • Generates data sheet that is individually tailored to a configured rotary encoder
  • Clicking a product type transfers selection criteria chosen in advance during preselection to the 'product level' and therefore 'remembers' them
  • Product page is developed individually for user based on data, offering the possibility to continue configuring and/or generate individual data sheet at any time
  • Explanatory fields also offer effective electrical and mechanical information, enabling users the ability to put together specific rotary encoder based on actual requests and requirements
  • Configured data sheet can be saved as a PDF document or printed out
  • Status of the configuration can be documented in a PDF at any time
  • Available on Wachendorff Automation's website and in four different languages (German, English, French and Spanish)
